Cranes — New Boom Installation & Load Testing

Certified Load Testing & Commissioning

RB Metal Solutions provides specialized ship crane works including structural repairs, new boom fabrication, on-board installation and certified load testing.

Our team executes complex crane operations at berth or on-board, under strict procedures and class-related requirements.

New Boom Installation & Load Testing – Case Study

Selected images from a full crane boom fabrication, quayside assembly and load testing project.

Cranes — New Boom Installation & Load Testing

Scope of Work (Executed)

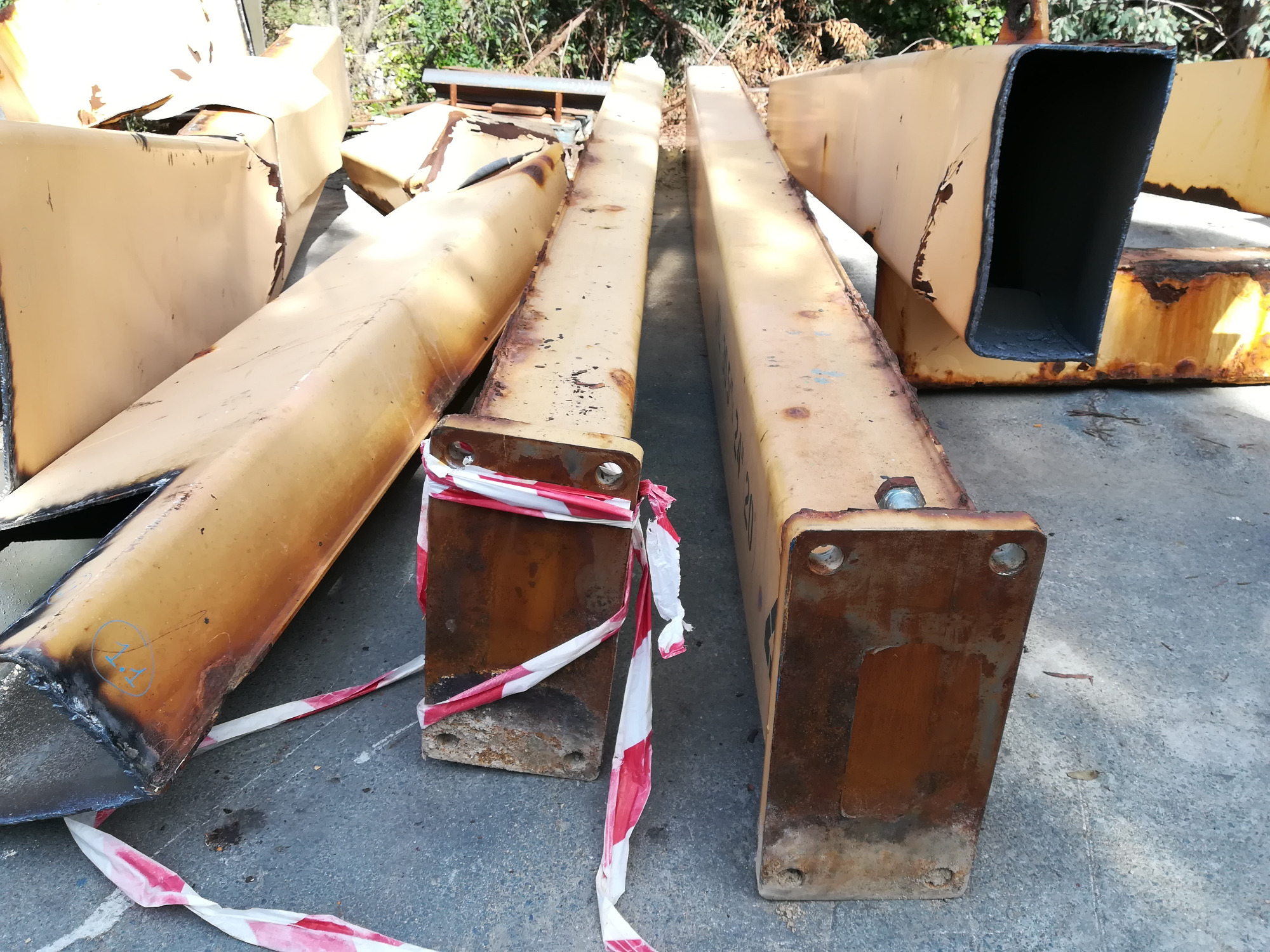

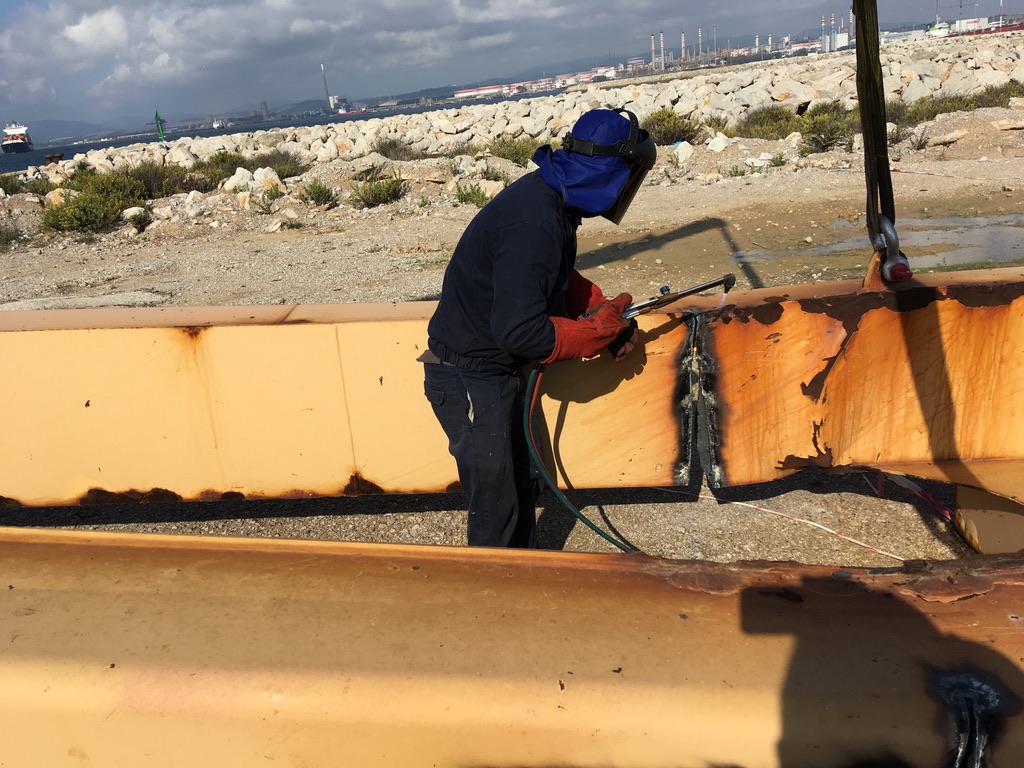

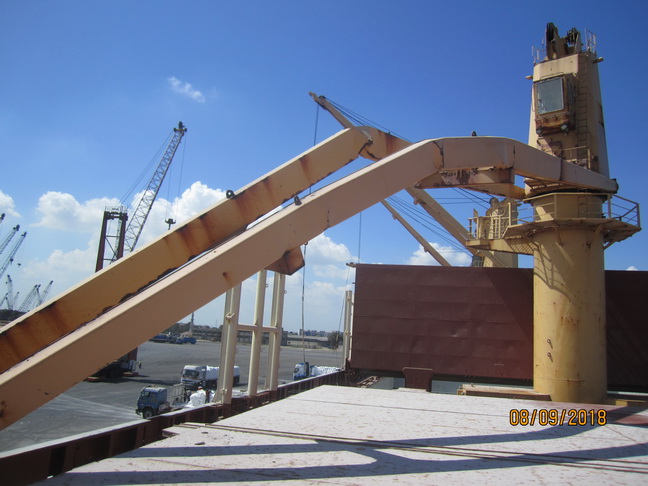

•Dismantling of damaged crane boom and cutting for transportation to workshop

•Technical assessment and preparation of execution plan

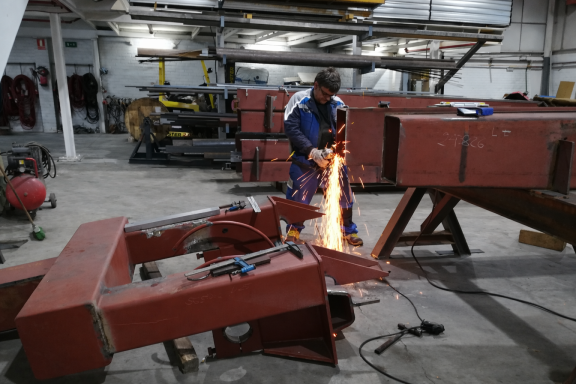

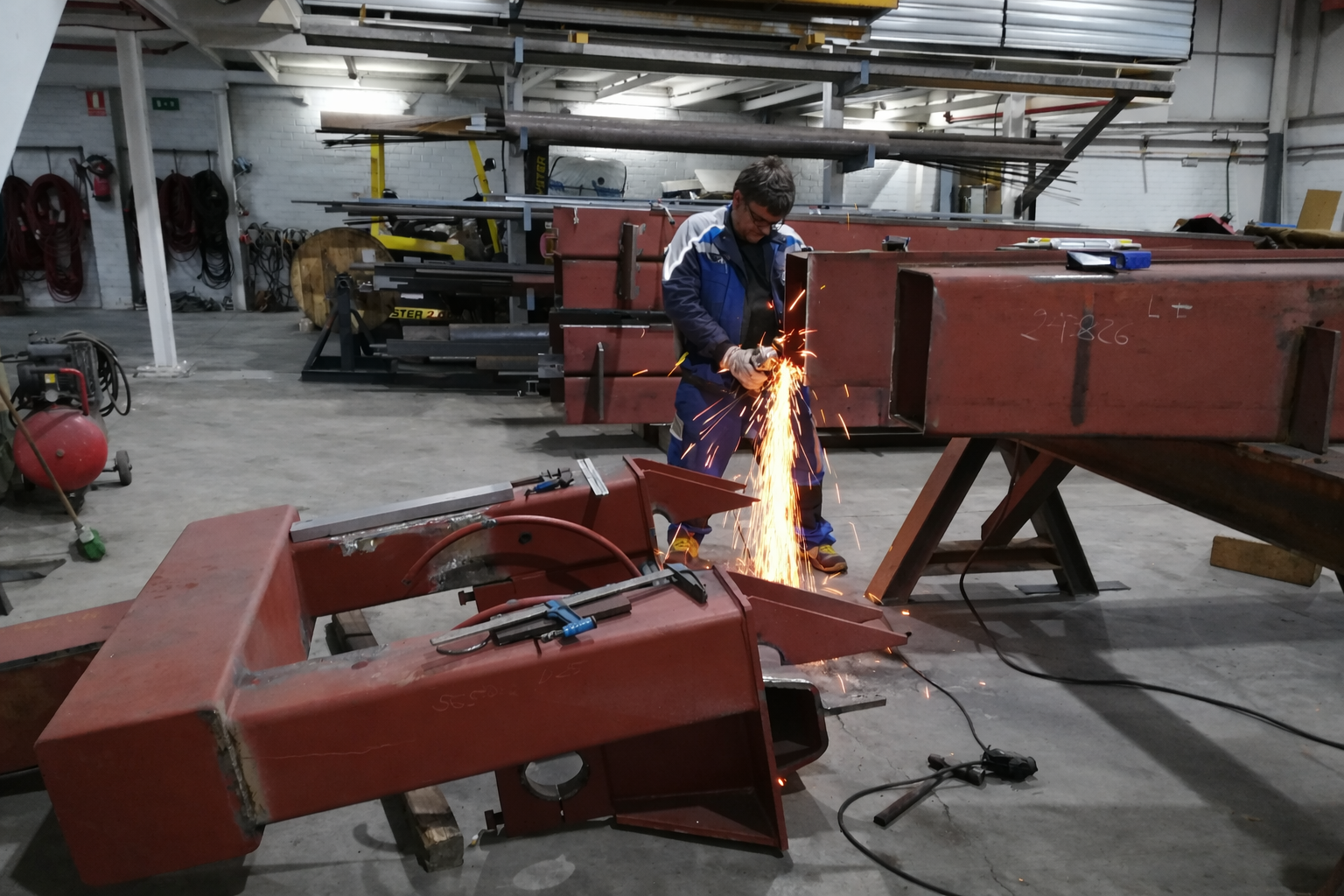

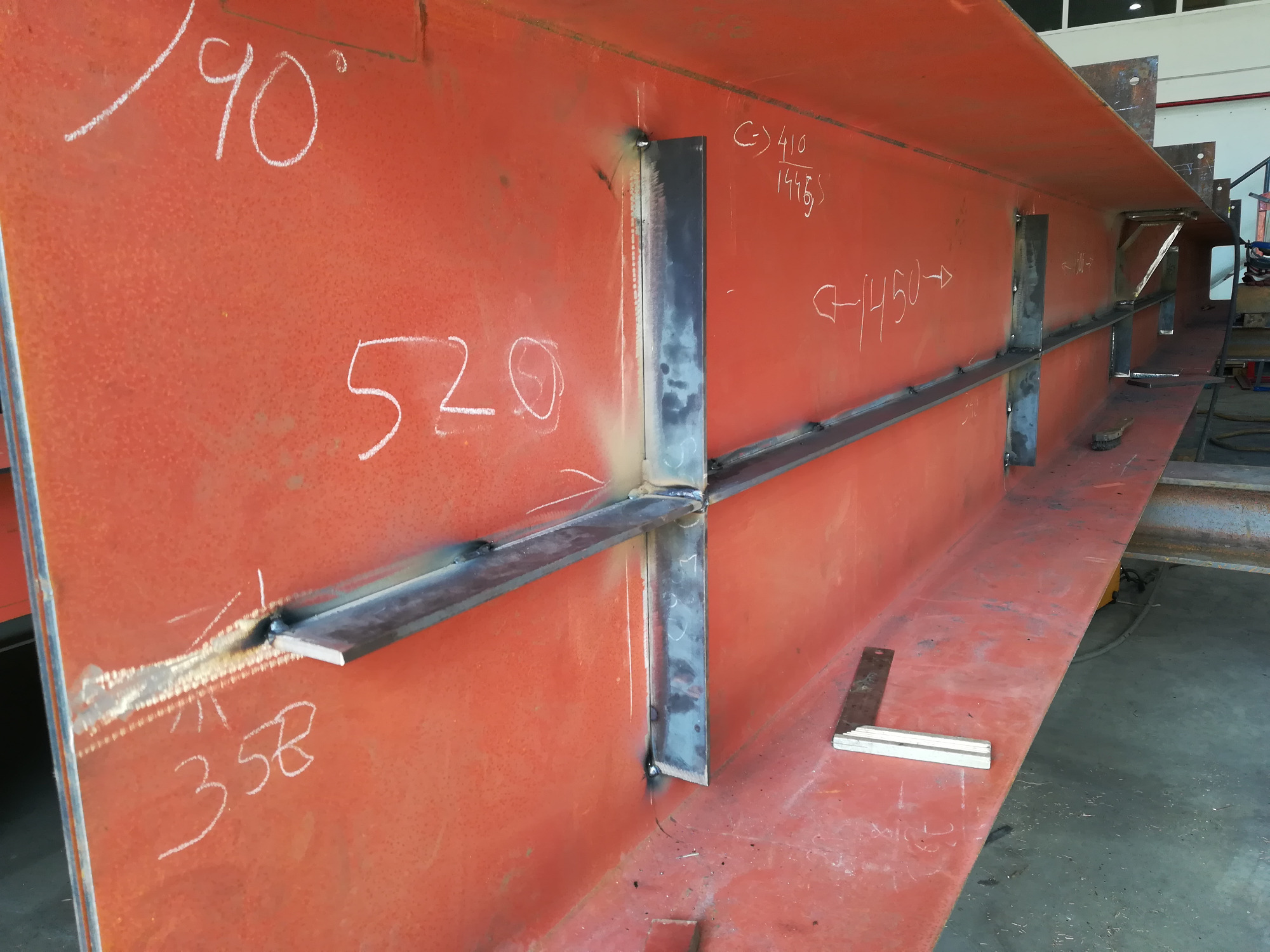

•Fabrication of new boom sections, including cutting and bending of steel plates

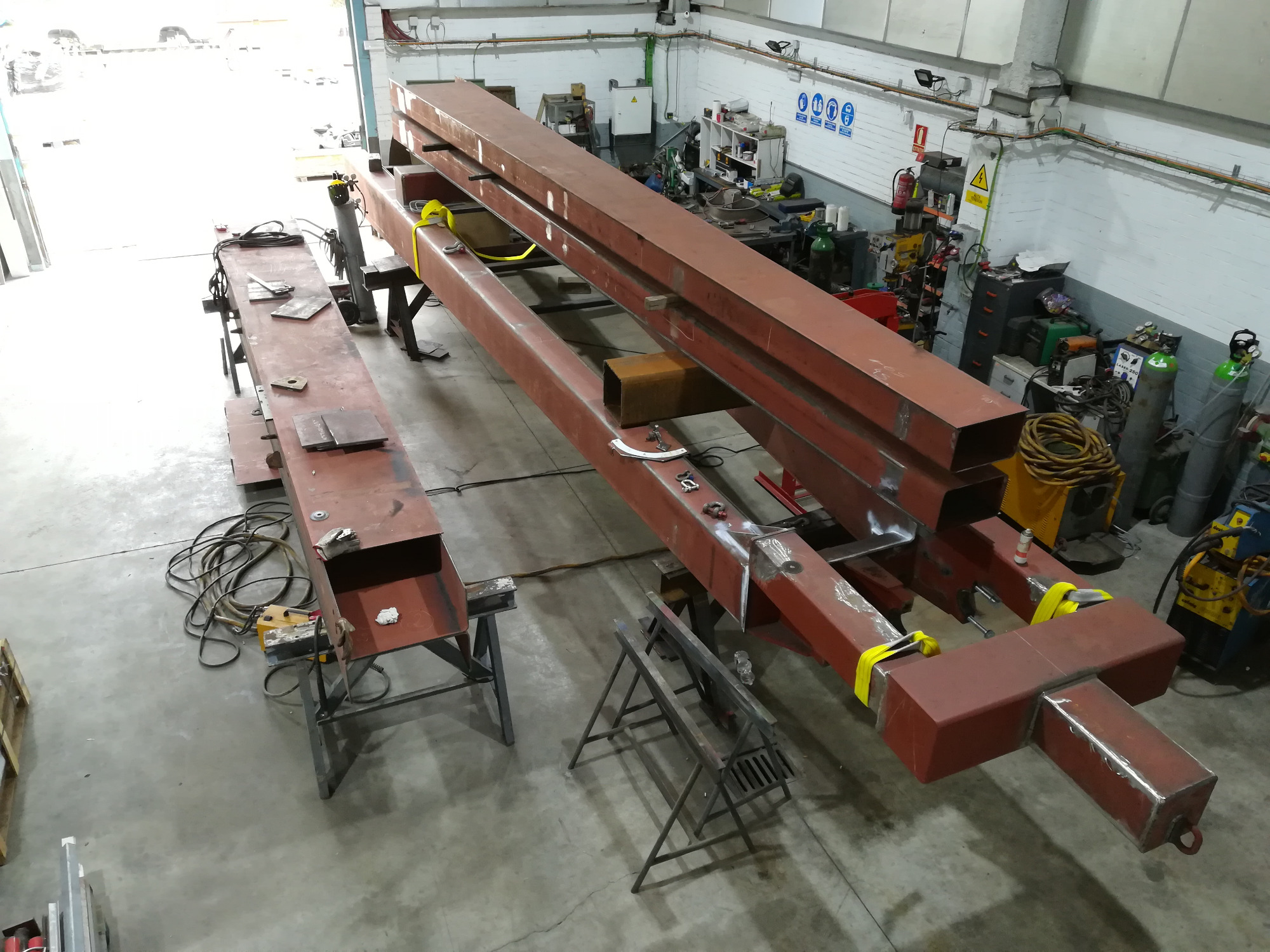

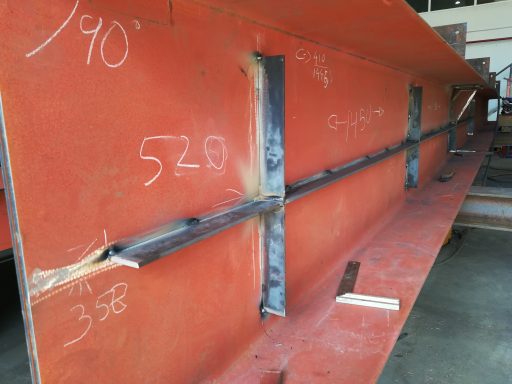

•Welding and assembly of all fabricated steel components

•Transportation of fabricated boom to port in five sections due to overall length

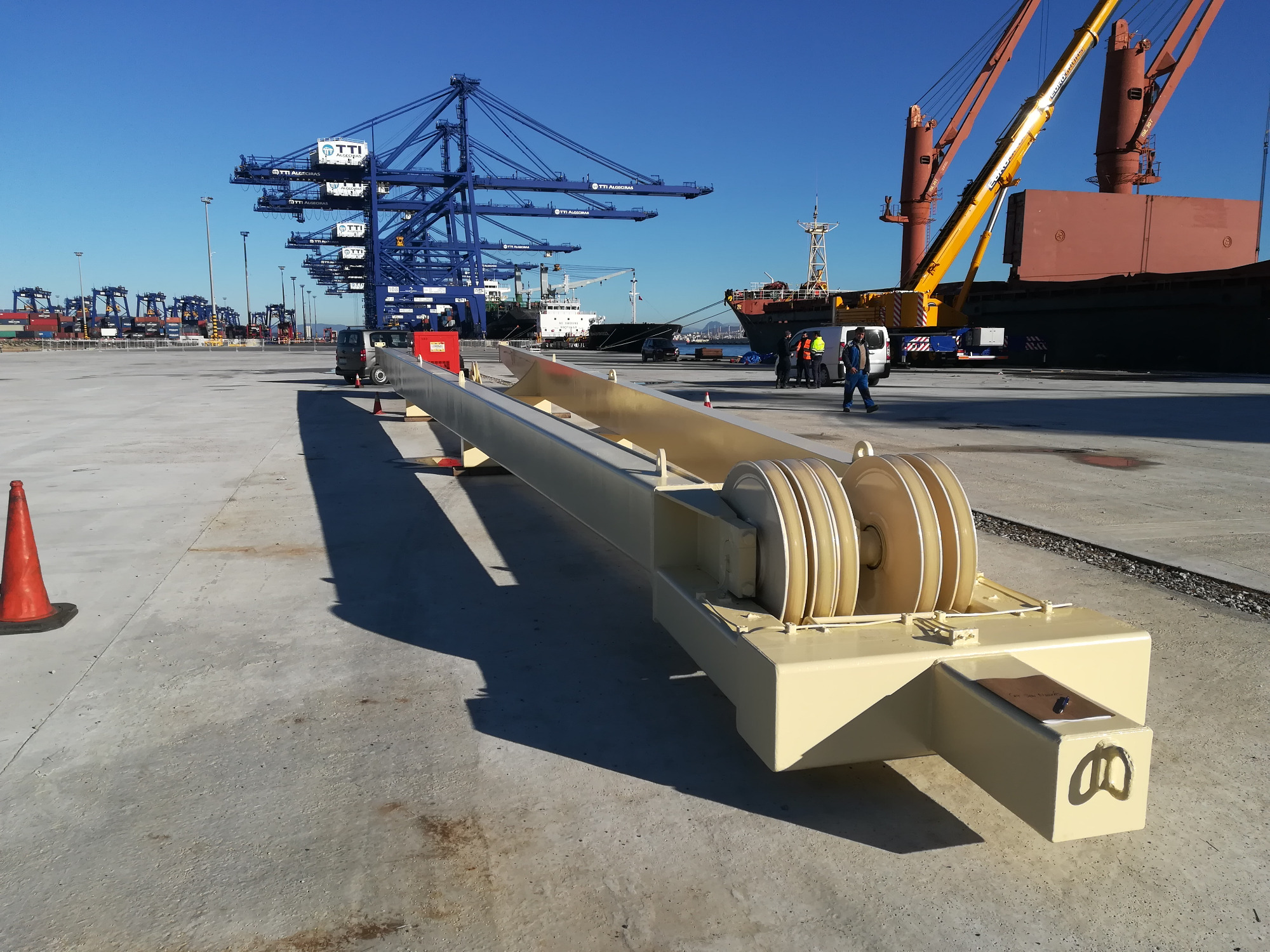

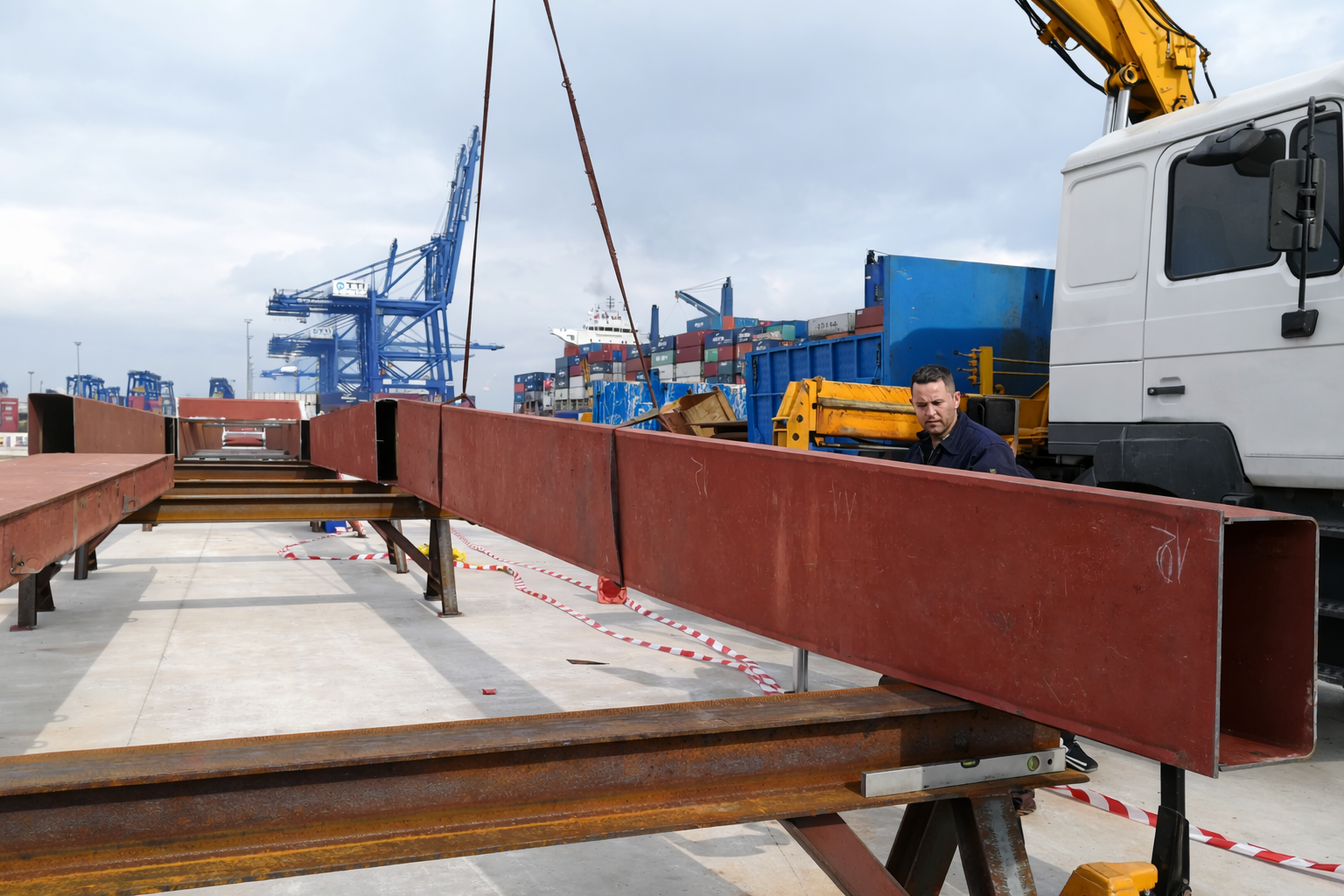

•On-quay assembly and welding of boom sections

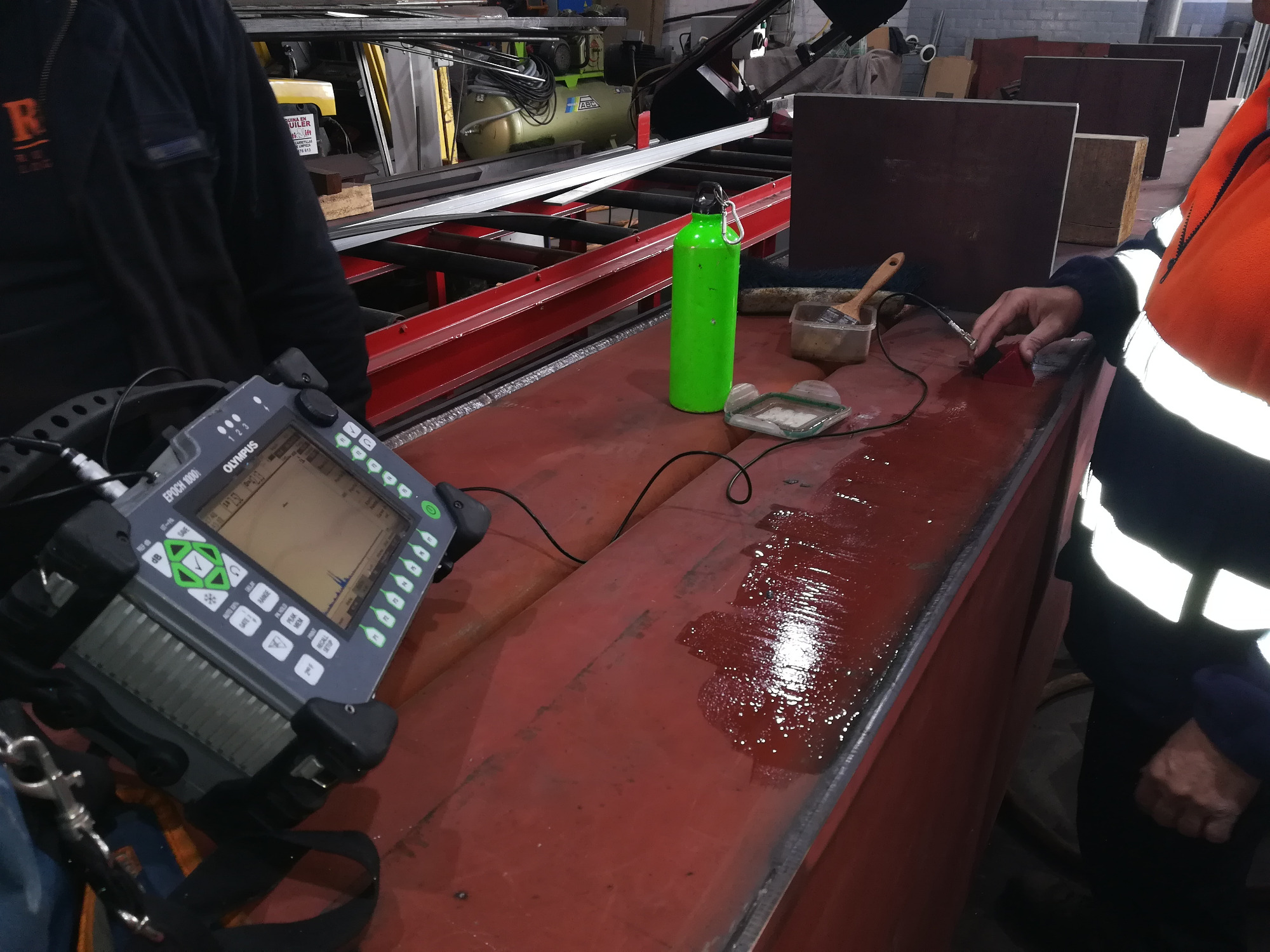

•NDT inspections (weld testing) and dimensional control

•Surface preparation and painting in accordance with client’s coating procedure

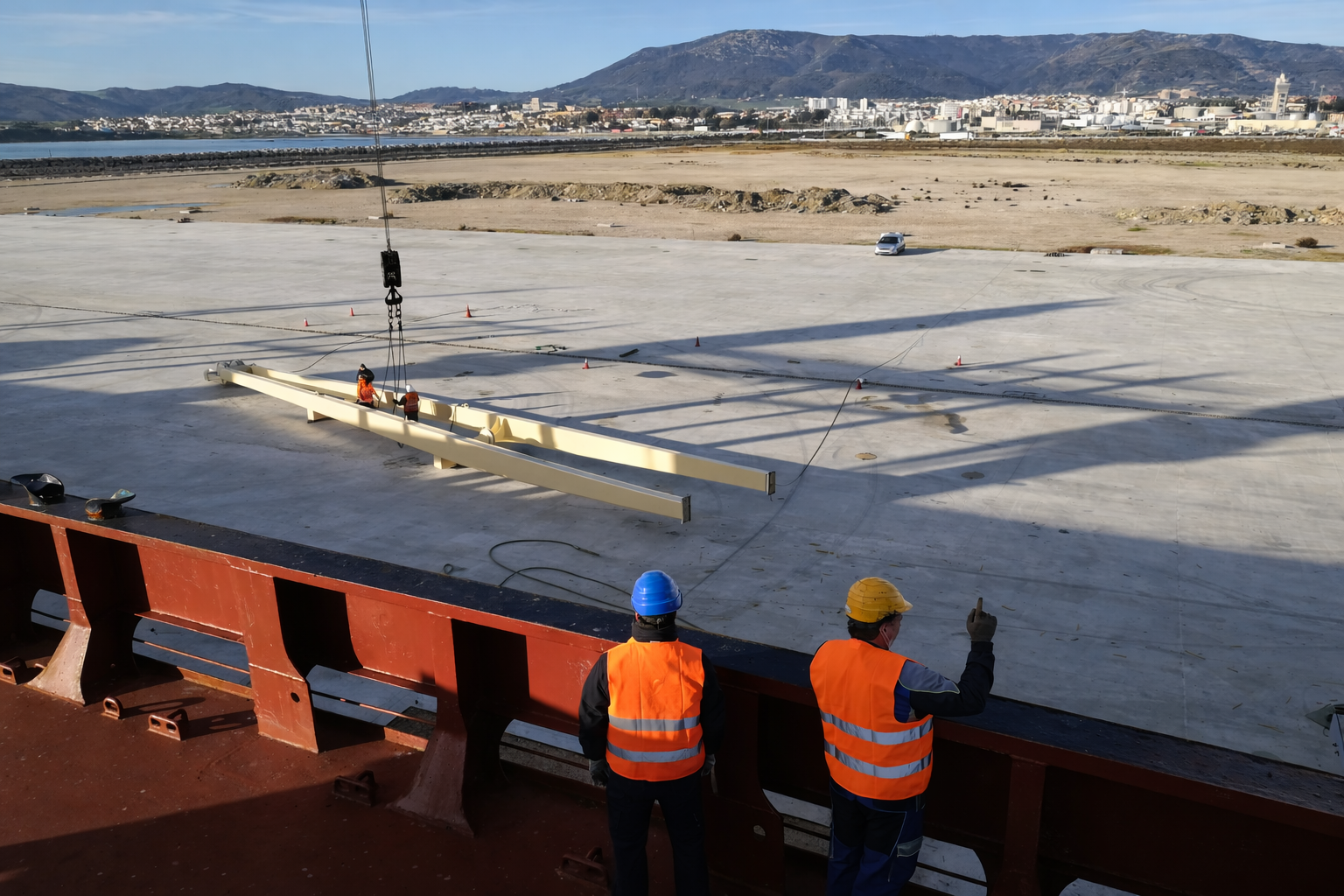

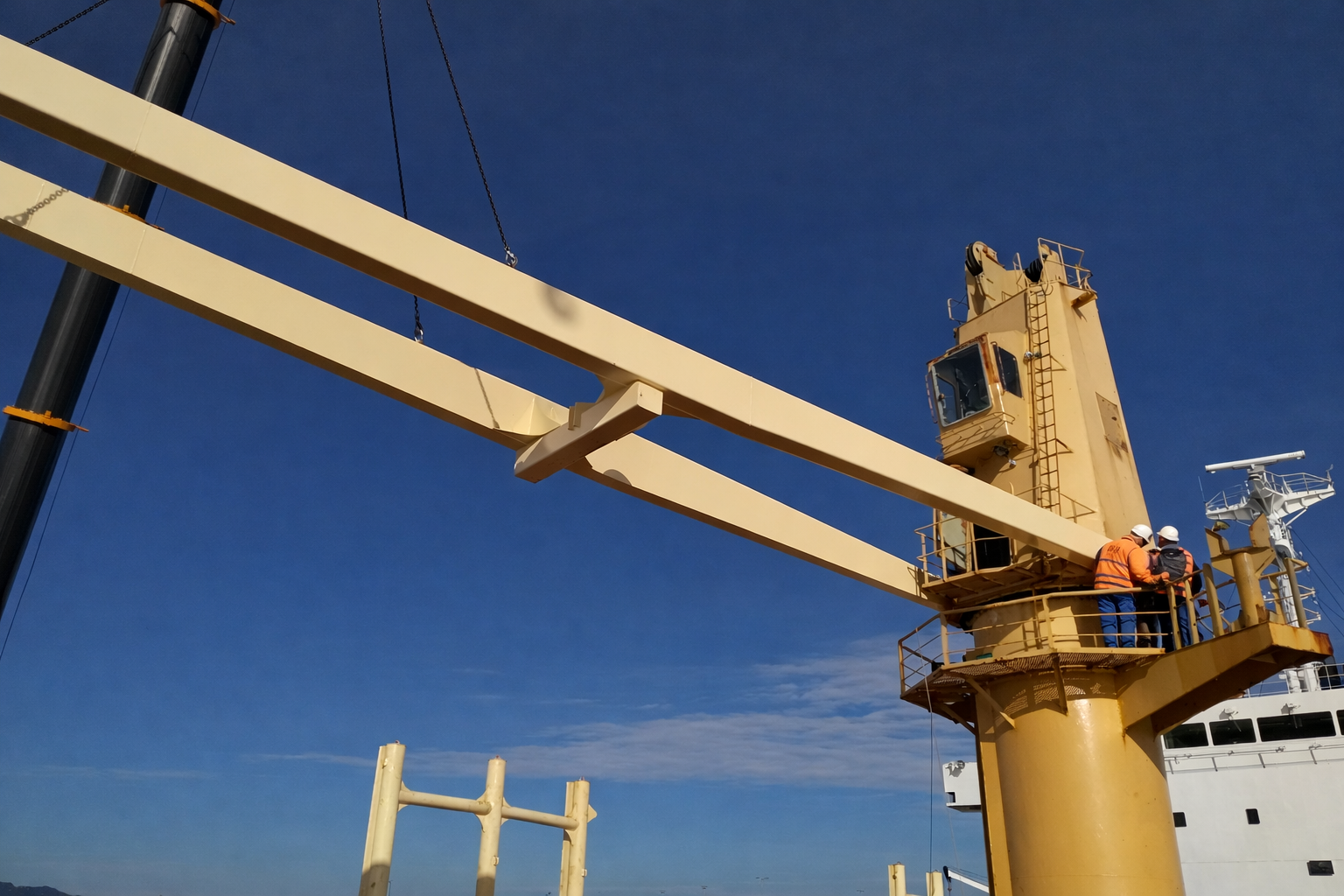

•Final installation of boom on crane

•Installation of new wire ropes

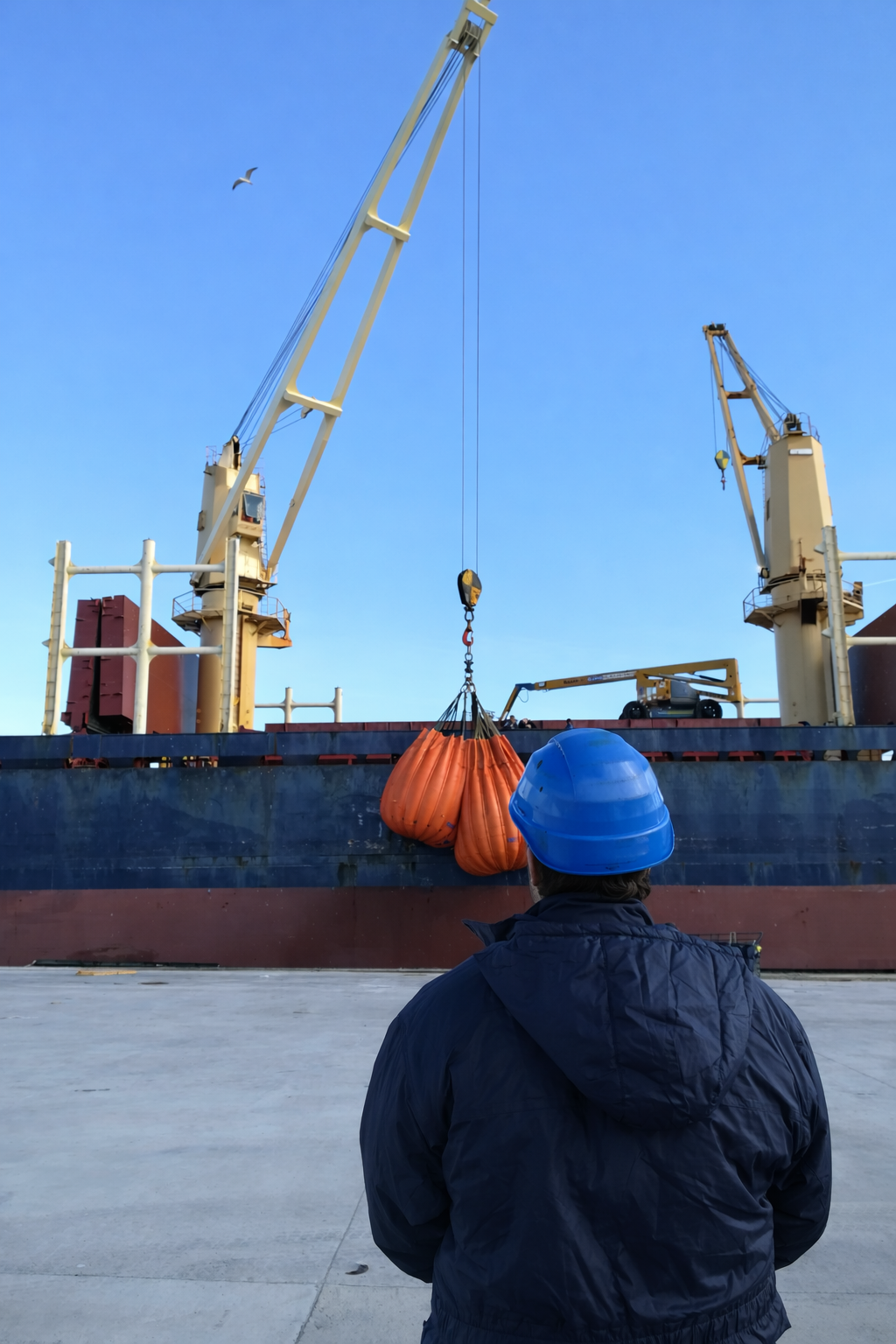

•Load testing executed up to 45 tons

Execution Details

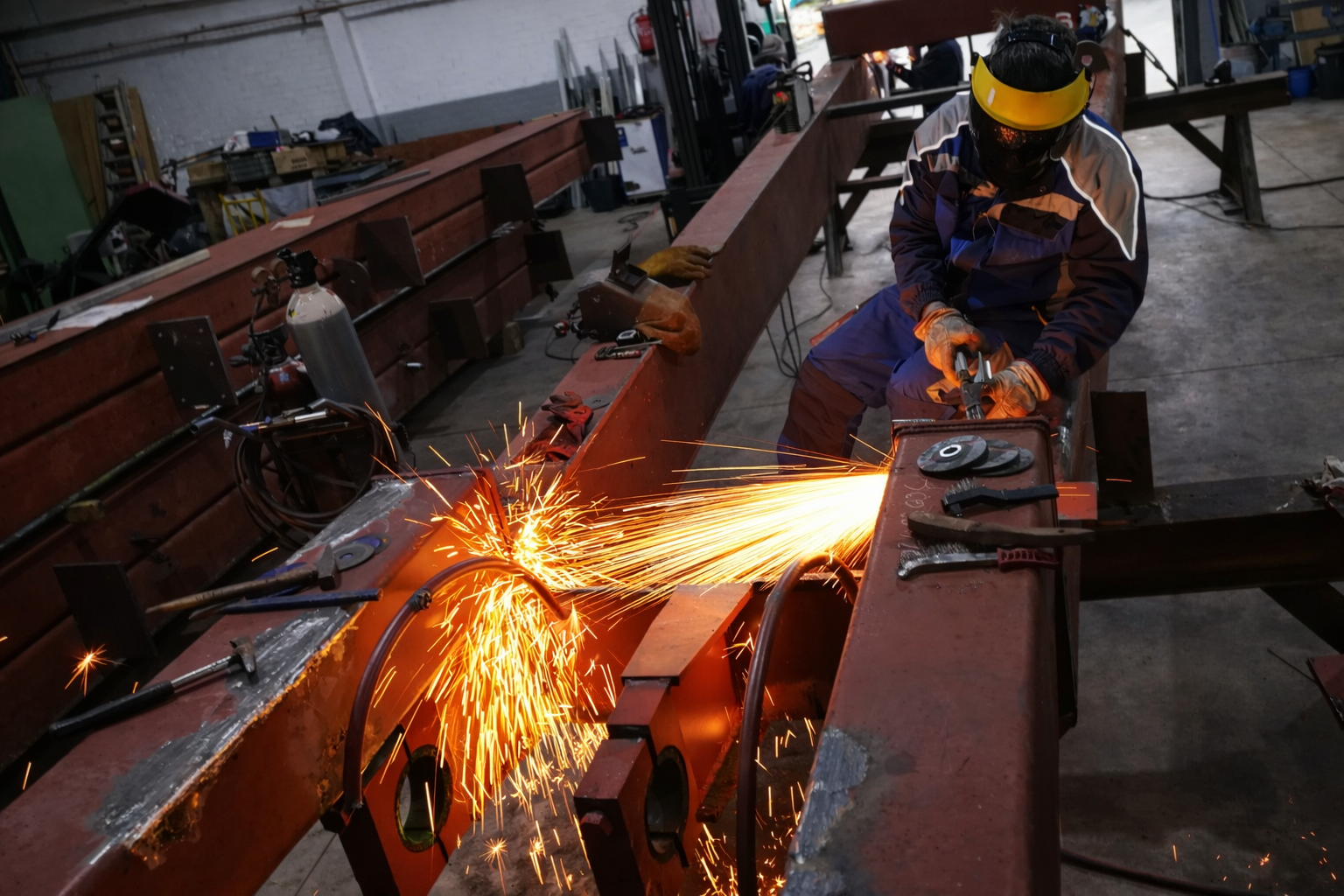

•Fabrication works carried out at workshop facilities

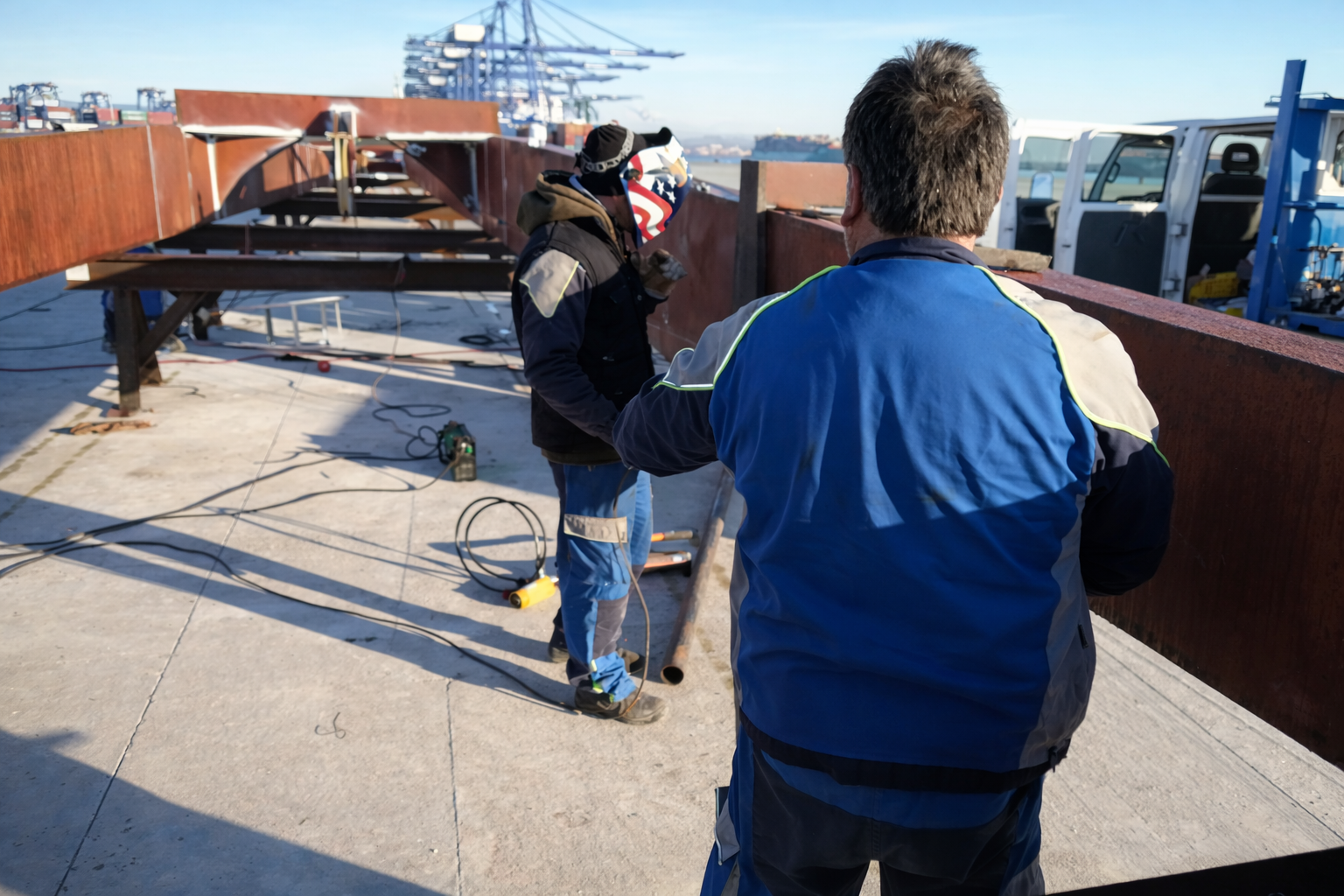

•Final assembly and welding executed at berth (quayside)

•NDT testing performed prior to final acceptance

•Client-compliant procedures applied throughout execution

Key Outcome

•New crane boom successfully fabricated and installed

•All welds approved following NDT inspection

•Load test completed up to 45 tons

•Crane returned to full operational condition
